Example images of binary microlensing events modelling software based on backward ray shooting method.

    click to enlarge

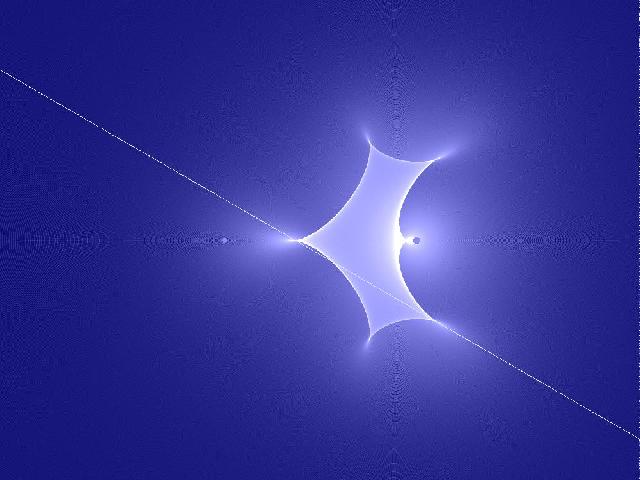

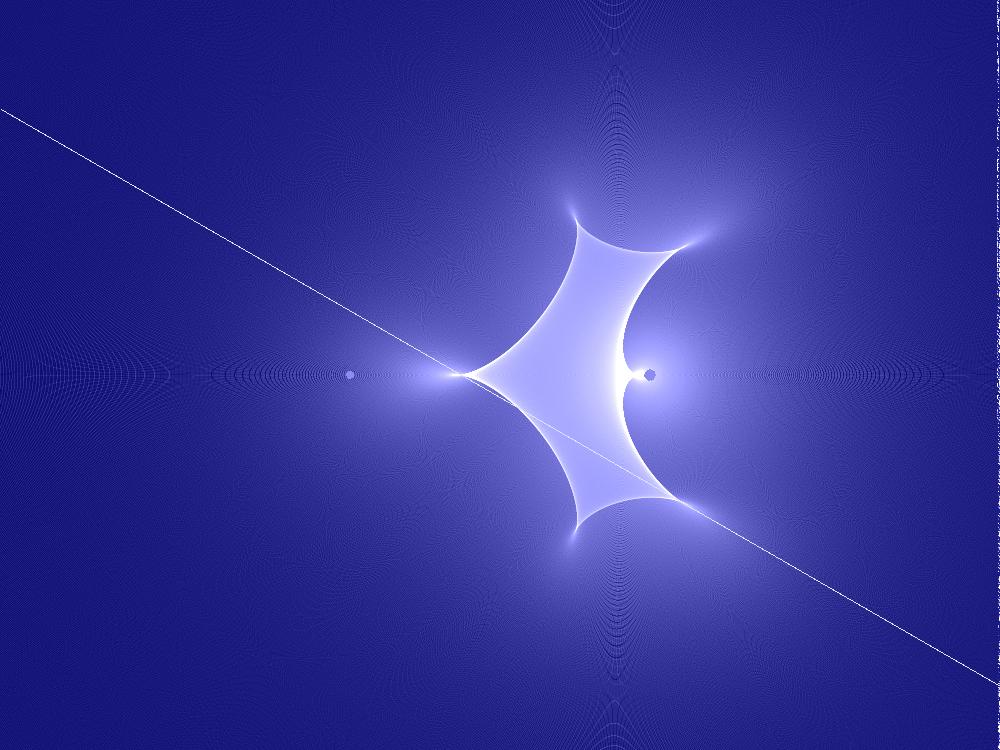

    Image shows magnification pattern, obtained with backward ray shooting method. Click the image to enlarge and see it in high resolution. Binary lens parameters: mass ratio q = 0.2, separation R0 = 1 RE. Small circles marks lensing stars with sizes corresponding to their masses. Line shows the path of relative source-lens motion with parameters: theta= 30 deg, impact param. b= 0.065 RE. Light curve of this event is shown below.


    click to enlarge

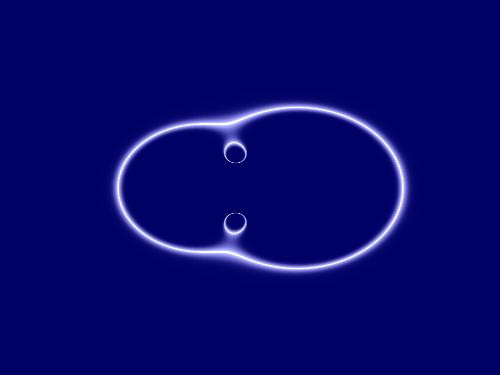

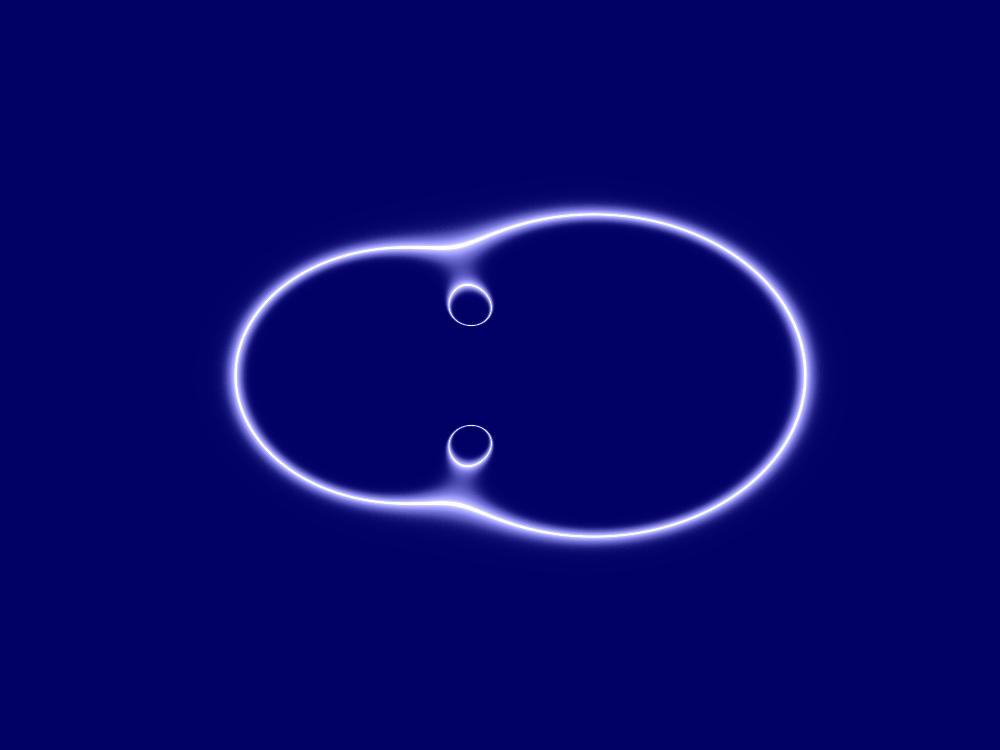

    Above image shows critical curve for binary lens with parameters: q=0.5, R0=0.69 RE. Click the image to enlarge and see it in high resolution.


    Older images:

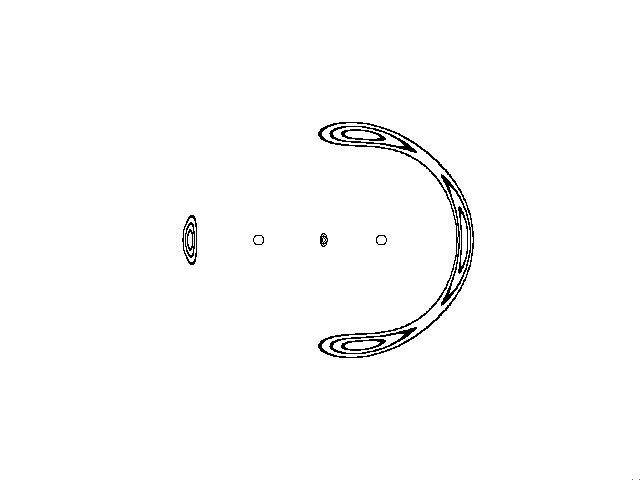

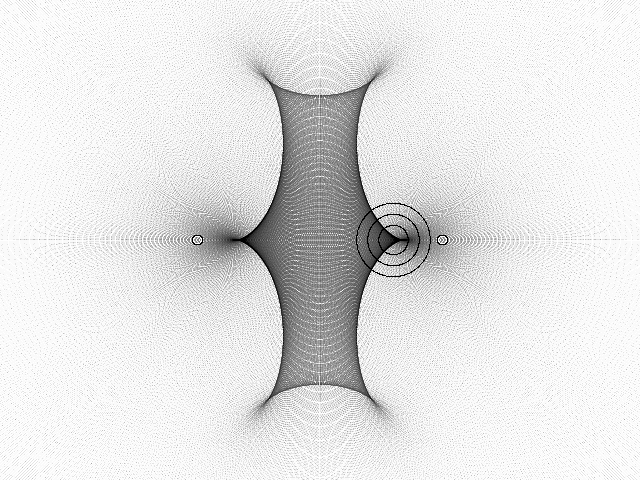

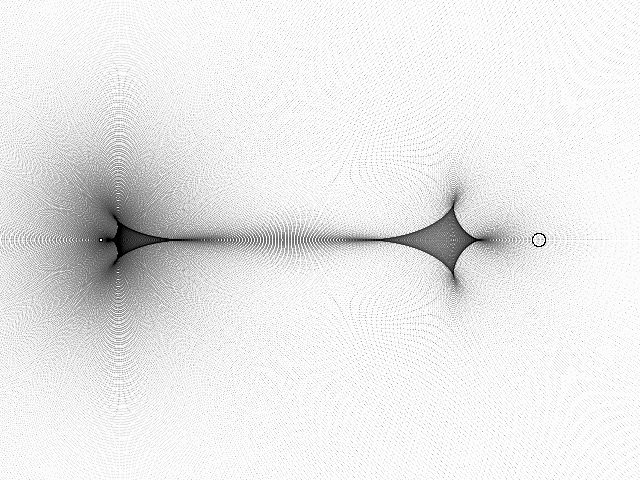

    Source position is marked by circles on above image. Different circles correspond to different source radiuses. On image below see how would look image of this source if lensed by lens like showed above. Small circles on both images are positions of lensing masses.
